MAX32625_BASE Target Family Info

Back to Target Families Index ^

Features Supported

Peripheral Drivers Supported

• GPIO Port Output: Driver for writing to an entire GPIO port at a time
• Analog Inputs: Analog input (ADC) peripheral driver
• μs Ticker: Clock peripheral with at least microsecond resolution that Mbed uses to implement Timer and Ticker.
• PWM Out: Pulse Width Modulation (PWM) generator peripheral driver
• Serial RTS/CTS Flow Control: Serial (UART) peripheral supports using RTS and/or CTS pins for hardware flow control.
• Low-Precision Ticker: Also known as the Low-Power Ticker, this peripheral keeps time at a low-frequency clock (usually 32kHz) and generates events for the application. Usually it is used to implement low power sleep.
• RTC: Real-Time Clock. Clock which keeps track of real world time, usually using a low frequency, accurate clock.
• GPIO Port Input: Driver for reading from an entire GPIO port at a time
• I2C Controller/Master: I2C driver for synchronous (blocking) controller/master mode
• GPIO Interrupts: GPIO input pin interrupt support
• Sleep: Support for sending the processor to sleep when no threads/ISRs are executing.
• SPI Controller/Master: Serial Peripheral Interface (SPI) controller/master mode
• Serial (UART): Support for buffered and unbuffered serial (UART) ports
• GPIO Port I/O: Driver for using an entire GPIO port as a bidirectional I/O port.

Boards in this Target Family

Board	MCU Part Number	Extra Features	Extra Peripheral Drivers	Components	RAM Banks	Flash Banks

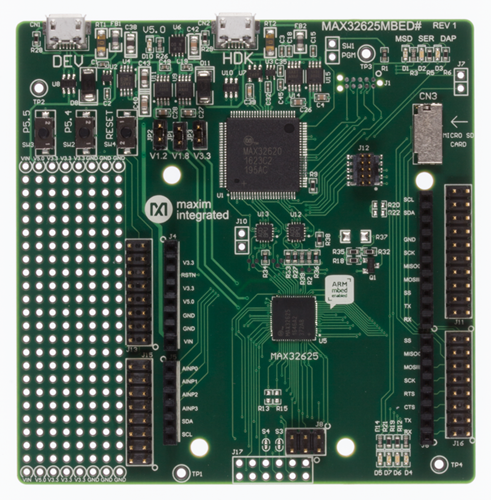

MAX32625MBED	MAX32625				IRAM1: 160 kiB	IROM1: 512 kiB
SDT32625B	MAX32625				IRAM1: 160 kiB	IROM1: 512 kiB
MAX32625PICO	MAX32625				IRAM1: 160 kiB	IROM1: 512 kiB

Inheritance Graph
