MCU_STM32H7 Target Family Info

Back to Target Families Index ^

Features Supported

Peripheral Drivers Supported

• CAN: Controller Area Network (CAN) peripheral driver
• I2C Controller/Master: I2C driver for synchronous (blocking) controller/master mode
• I2C Peripheral/Slave: I2C for interrupt-based peripheral/slave mode
• Sleep: Support for sending the processor to sleep when no threads/ISRs are executing.
• Flash IAP: Driver allowing In-Application Programming (IAP) of the MCU flash memory.
• Analog Outputs: Analog output (DAC) peripheral driver
• Async I2C Controller/Master: Driver allowing I2C controller mode to be used in the background via interrupts and/or DMA.
• RTC: Real-Time Clock. Clock which keeps track of real world time, usually using a low frequency, accurate clock.
• SPI Peripheral/Slave: Serial Peripheral Interface (SPI) device/slave mode
• Serial (UART): Support for buffered and unbuffered serial (UART) ports
• SPI Controller/Master: Serial Peripheral Interface (SPI) controller/master mode
• Watchdog: Peripheral which resets the chip if software doesn't service it within a configurable amount of time. Used to guard against software hangs.
• μs Ticker: Clock peripheral with at least microsecond resolution that Mbed uses to implement Timer and Ticker.
• Serial RTS/CTS Flow Control: Serial (UART) peripheral supports using RTS and/or CTS pins for hardware flow control.
• Hardware CRC: Driver for CRC Accelerator peripheral, used to accelerate certain CRC computations.
• Low-Precision Ticker: Also known as the Low-Power Ticker, this peripheral keeps time at a low-frequency clock (usually 32kHz) and generates events for the application. Usually it is used to implement low power sleep.
• GPIO Interrupts: GPIO input pin interrupt support
• GPIO Port I/O: Driver for using an entire GPIO port as a bidirectional I/O port.
• True Random Number Generator: Cryptographic-grade True Random Number Generator (TRNG). This is required to implement SSL communications securely unless you provision devices with an entropy seed stored in nonvolatile storage.
• Analog Inputs: Analog input (ADC) peripheral driver
• PWM Out: Pulse Width Modulation (PWM) generator peripheral driver
• GPIO Port Output: Driver for writing to an entire GPIO port at a time
• Reset Reason: Support for determining the cause of the most recent MCU reset.
• Async SPI: Allows use of SPI controller mode in the background via interrupts and/or DMA.
• GPIO Port Input: Driver for reading from an entire GPIO port at a time

Boards in this Target Family

Board	MCU Part Number	Extra Features	Extra Peripheral Drivers	Components	RAM Banks	Flash Banks

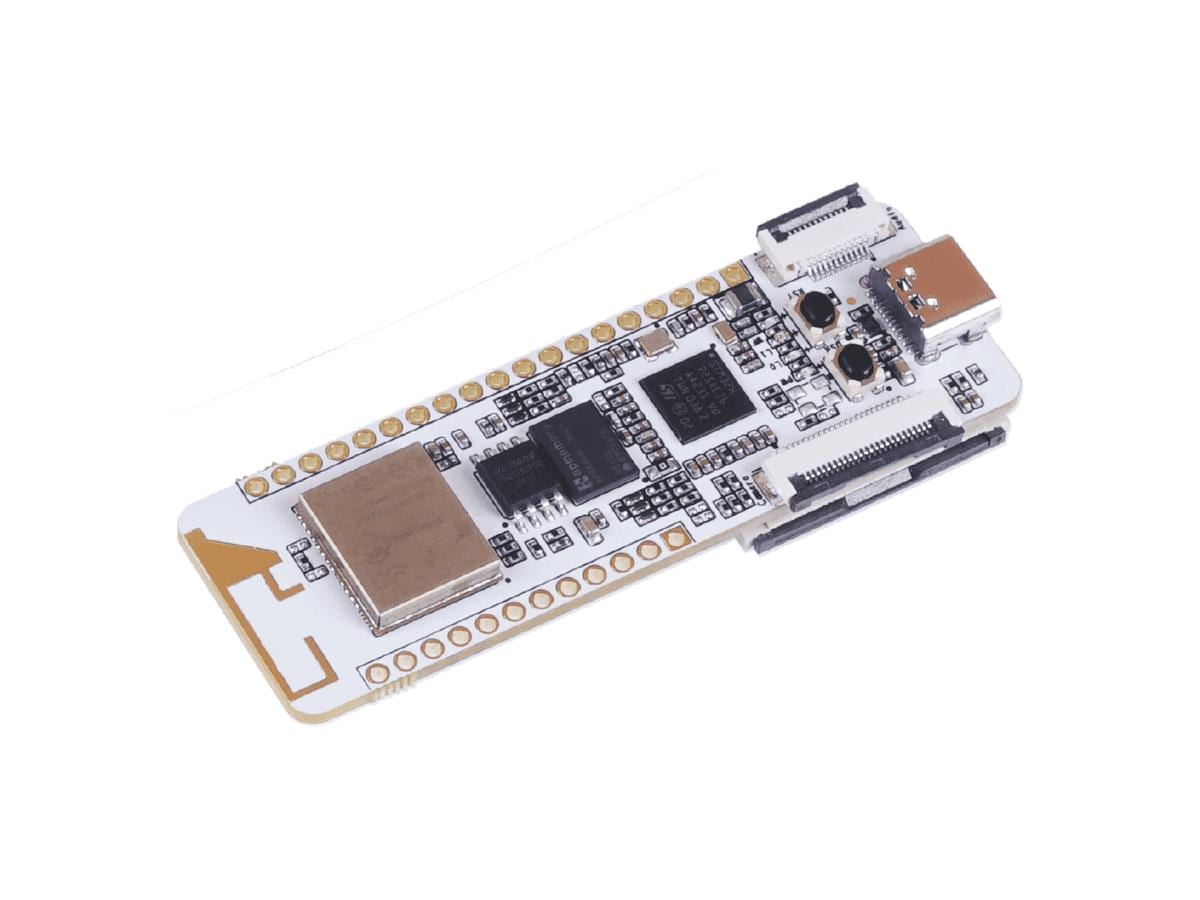

WIO_H725AE	STM32H725AEIx		USB Device, Memory Protection Unit		SRAM_BKUP: 4 kiB SRAM_D1: 320 kiB SRAM_D2: 32 kiB SRAM_D3: 16 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
NUCLEO_H743ZI2	STM32H743ZITx		USB Device, Memory Protection Unit, Ethernet MAC		SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
NUCLEO_H723ZG	STM32H723ZGTx		USB Device, Memory Protection Unit, Ethernet MAC		SRAM_BKUP: 4 kiB SRAM_D1: 320 kiB SRAM_D2: 32 kiB SRAM_D3: 16 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
NUCLEO_H745ZI_Q_CM7	STM32H745ZITx		USB Device, Memory Protection Unit		SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
NUCLEO_H745ZI_Q_CM4	STM32H745ZITx		USB Device, Memory Protection Unit		SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
DISCO_H747I_CM7	STM32H747XIHx		Quad SPI, Memory Protection Unit	SFDP QuadSPI Flash	SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
DISCO_H747I_CM4	STM32H747XIHx		Quad SPI	SFDP QuadSPI Flash	SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
ARDUINO_PORTENTA_H7_M7	STM32H747XIHx	Bluetooth Low Energy	USB Device, Quad SPI, Memory Protection Unit, Ethernet MAC	Infineon Wifi Host Driver, SFDP QuadSPI Flash, Infineon CYW4343W (Arduino Portenta variant), Infineon CYW43XXX	SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
ARDUINO_PORTENTA_H7_M4	STM32H747XIHx	Bluetooth Low Energy	USB Device, Quad SPI, Ethernet MAC	Infineon Wifi Host Driver, SFDP QuadSPI Flash, Infineon CYW4343W (Arduino Portenta variant), Infineon CYW43XXX	SRAM_BKUP: 4 kiB SRAM_D1: 512 kiB SRAM_D2: 288 kiB SRAM_D3: 64 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 2048 kiB
NUCLEO_H7A3ZI_Q	STM32H7A3ZITxQ		Memory Protection Unit		SRAM_AHB: 128 kiB SRAM_AXI: 1024 kiB SRAM_BKUP: 4 kiB SRAM_D3: 32 kiB SRAM_DTC: 128 kiB SRAM_ITC: 64 kiB	IROM1: 128 kiB
