MCU_STM32L4 Target Family Info

Back to Target Families Index ^

Features Supported

Peripheral Drivers Supported

• CAN: Controller Area Network (CAN) peripheral driver
• I2C Controller/Master: I2C driver for synchronous (blocking) controller/master mode
• I2C Peripheral/Slave: I2C for interrupt-based peripheral/slave mode
• Sleep: Support for sending the processor to sleep when no threads/ISRs are executing.
• Flash IAP: Driver allowing In-Application Programming (IAP) of the MCU flash memory.
• Analog Outputs: Analog output (DAC) peripheral driver
• Async I2C Controller/Master: Driver allowing I2C controller mode to be used in the background via interrupts and/or DMA.
• RTC: Real-Time Clock. Clock which keeps track of real world time, usually using a low frequency, accurate clock.
• SPI Peripheral/Slave: Serial Peripheral Interface (SPI) device/slave mode
• Serial (UART): Support for buffered and unbuffered serial (UART) ports
• SPI Controller/Master: Serial Peripheral Interface (SPI) controller/master mode
• Watchdog: Peripheral which resets the chip if software doesn't service it within a configurable amount of time. Used to guard against software hangs.
• Legacy Async Serial (UART): Legacy asynchronous serial API via SerialBase
• μs Ticker: Clock peripheral with at least microsecond resolution that Mbed uses to implement Timer and Ticker.
• Serial RTS/CTS Flow Control: Serial (UART) peripheral supports using RTS and/or CTS pins for hardware flow control.
• Memory Protection Unit: Mbed supports configuring the MPU on this device to disable writing to ROM and executing from RAM.
• Hardware CRC: Driver for CRC Accelerator peripheral, used to accelerate certain CRC computations.
• GPIO Interrupts: GPIO input pin interrupt support
• GPIO Port I/O: Driver for using an entire GPIO port as a bidirectional I/O port.
• True Random Number Generator: Cryptographic-grade True Random Number Generator (TRNG). This is required to implement SSL communications securely unless you provision devices with an entropy seed stored in nonvolatile storage.
• Analog Inputs: Analog input (ADC) peripheral driver
• PWM Out: Pulse Width Modulation (PWM) generator peripheral driver
• GPIO Port Output: Driver for writing to an entire GPIO port at a time
• Reset Reason: Support for determining the cause of the most recent MCU reset.
• Async SPI: Allows use of SPI controller mode in the background via interrupts and/or DMA.
• GPIO Port Input: Driver for reading from an entire GPIO port at a time

Boards in this Target Family

Board	MCU Part Number	Extra Features	Extra Peripheral Drivers	Components	RAM Banks	Flash Banks
NUCLEO_L432KC	STM32L432KCUx		Low-Precision Ticker		IRAM1: 48 kiB IRAM2: 16 kiB	IROM1: 256 kiB
NUCLEO_L433RC_P	STM32L433RCTx		Low-Precision Ticker		IRAM1: 48 kiB IRAM2: 16 kiB	IROM1: 256 kiB
ADV_WISE_1510	STM32L443RCTx				IRAM1: 48 kiB IRAM2: 16 kiB	IROM1: 256 kiB
NUCLEO_L452RE_P	STM32L452RETx		Low-Precision Ticker		IRAM1: 128 kiB IRAM2: 32 kiB	IROM1: 512 kiB

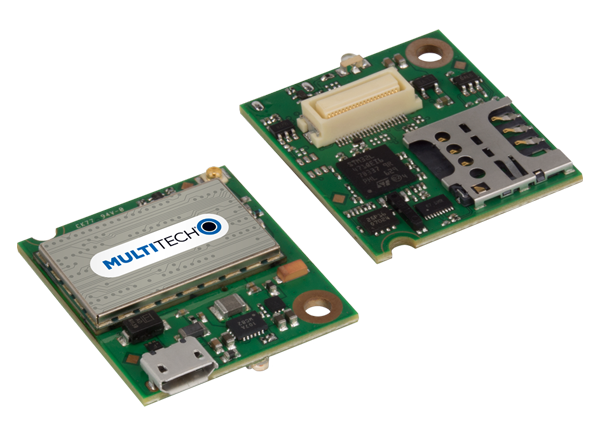

MTS_DRAGONFLY_L471QG	STM32L471QGIx		Low-Precision Ticker	Multitech Dragonfly Nano Cellular	IRAM1: 96 kiB IRAM2: 32 kiB	IROM1: 1024 kiB
DISCO_L475VG_IOT01A	STM32L475VGTx	Bluetooth Low Energy	USB Device, Low-Precision Ticker, Quad SPI	SFDP QuadSPI Flash, STMicro BlueNRG-MS	IRAM1: 96 kiB IRAM2: 32 kiB	IROM1: 1024 kiB
NUCLEO_L476RG	STM32L476RGTx		Low-Precision Ticker		IRAM1: 96 kiB IRAM2: 32 kiB	IROM1: 1024 kiB
DISCO_L476VG	STM32L476VGTx		USB Device, Low-Precision Ticker, Quad SPI	SFDP QuadSPI Flash	IRAM1: 96 kiB IRAM2: 32 kiB	IROM1: 1024 kiB
NUCLEO_L486RG	STM32L486RGTx		Low-Precision Ticker		IRAM1: 96 kiB IRAM2: 32 kiB	IROM1: 1024 kiB
DISCO_L496AG	STM32L496AGIx		USB Device, Low-Precision Ticker, Quad SPI	SFDP QuadSPI Flash	IRAM1: 256 kiB IRAM2: 64 kiB	IROM1: 1024 kiB
NUCLEO_L496ZG	STM32L496ZGTx		USB Device, Low-Precision Ticker		IRAM1: 256 kiB IRAM2: 64 kiB	IROM1: 1024 kiB
NUCLEO_L496ZG_P	STM32L496ZGTx		USB Device, Low-Precision Ticker		IRAM1: 256 kiB IRAM2: 64 kiB	IROM1: 1024 kiB
NUCLEO_L4R5ZI	STM32L4R5ZITx		USB Device, Low-Precision Ticker		IRAM1: 640 kiB	IROM1: 2048 kiB
NUCLEO_L4R5ZI_P	STM32L4R5ZITx		USB Device, Low-Precision Ticker		IRAM1: 640 kiB	IROM1: 2048 kiB
DISCO_L4R9I	STM32L4R9AIIx		USB Device, Low-Precision Ticker, Quad SPI, Octal SPI	SFDP Octal SPI Flash	IRAM1: 640 kiB	IROM1: 2048 kiB
B_L4S5I_IOT01A	STM32L4S5VITx	Bluetooth Low Energy	USB Device, Low-Precision Ticker, Quad SPI	SFDP QuadSPI Flash, STMicro BlueNRG-MS	IRAM1: 640 kiB	IROM1: 2048 kiB
