NO_FAMILY Target Family Info

Back to Target Families Index ^

Features Supported

Peripheral Drivers Supported

Boards in this Target Family

Board MCU Part Number Extra Features Extra Peripheral Drivers Components RAM Banks Flash Banks

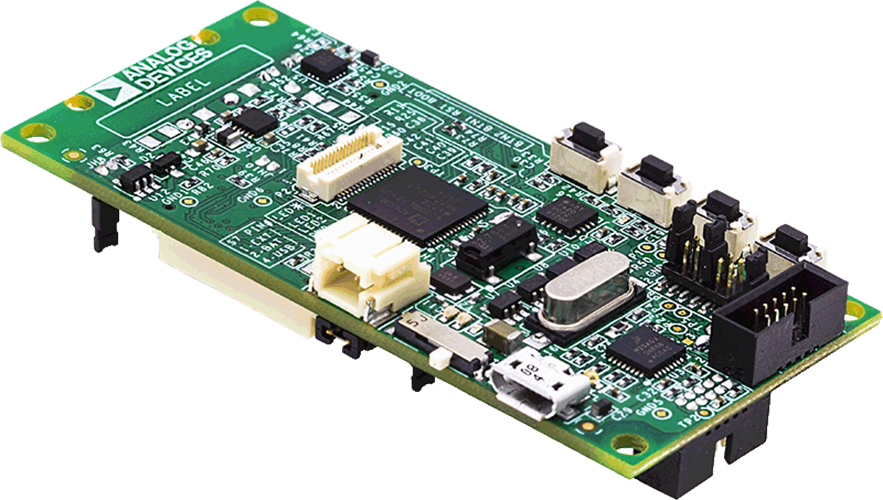

EV_COG_AD4050LZEV_COG_AD4050LZ Image ADuCM4050 Analog Inputs, Memory Protection Unit, Flash IAP, RTC, True Random Number Generator, Sleep, SPI Controller/Master
  • IRAM1: 16 kiB
  • IRAM2: 80 kiB
  • IROM1: 508 kiB
EV_COG_AD3029LZEV_COG_AD3029LZ Image ADuCM3029 Analog Inputs, Memory Protection Unit, Flash IAP, RTC, True Random Number Generator, Sleep, SPI Controller/Master
  • IRAM1: 16 kiB
  • IRAM2: 16 kiB
  • IROM1: 256 kiB
LPC1114LPC1114 Image LPC1114FN28/102 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O
  • IRAM1: 4 kiB
  • IROM1: 32 kiB
KL25ZKL25Z Image MKL25Z128xxx4 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs
  • IRAM1: 16 kiB
  • IROM1: 128 kiB
KL46ZKL46Z Image MKL46Z256VLL4 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, Flash IAP, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs
  • SRAM: 32 kiB
  • PROGRAM_FLASH: 256 kiB
K22FK22F Image MK22FN512VLH12 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, USB Device, True Random Number Generator, Low-Precision Ticker, Flash IAP, RTC, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs
  • SRAM_LOWER: 64 kiB
  • SRAM_UPPER: 64 kiB
  • PROGRAM_FLASH: 512 kiB
KL43ZKL43Z Image MKL43Z256VLH4 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, USB Device, Flash IAP, Low-Precision Ticker, RTC, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs
  • SRAM: 32 kiB
  • PROGRAM_FLASH: 256 kiB
KW41ZKW41Z Image MKW41Z512xxx4 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, True Random Number Generator, Low-Precision Ticker, Flash IAP, RTC, GPIO Port Input, Sleep, SPI Controller/Master, 802.15.4 Radio, GPIO Port I/O, Analog Outputs
  • IRAM1: 128 kiB
  • IROM1: 512 kiB
K66FK66F Image MK66FN2M0xxx18 Arm Platform Security Architecture (PSA) Analog Inputs, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, True Random Number Generator, Low-Precision Ticker, Legacy Async Serial (UART), GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs, GPIO Port Output, SPI Peripheral/Slave, Ethernet MAC, PWM Out, Flash IAP, RTC SD/SDHC Card
  • IRAM1: 192 kiB
  • IRAM2: 64 kiB
  • IROM1: 2048 kiB
MIMXRT1170_EVKMIMXRT1170_EVK Image MIMXRT1176DVMAA SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, PWM Out, Flash IAP, Low-Precision Ticker, SPI Controller/Master
  • CM4_LMEM: 256 kiB
  • SRAM_DTC: 256 kiB
  • SRAM_ITC: 256 kiB
  • SRAM_OC_1_2_COMBINED: 1152 kiB
    LPC54114LPC54114 Image LPC54114J256BD64 GPIO Port Output, SPI Peripheral/Slave, Analog Inputs, I2C Peripheral/Slave, Memory Protection Unit, Flash IAP, RTC, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O
    • SRAM0: 64 kiB
    • SRAM1: 64 kiB
    • SRAM2: 32 kiB
    • SRAMX: 32 kiB
    • PROGRAM_FLASH: 256 kiB
    ARM_CM3DS_MPS2ARM_CM3DS_MPS2 Image GPIO Port Output, Analog Inputs, Ethernet MAC, Memory Protection Unit, Flash IAP, Low-Precision Ticker, RTC, GPIO Port Input, Sleep, True Random Number Generator, SPI Controller/Master, GPIO Port I/O Microchip LAN9220
        ARM_MUSCA_B1ARM_MUSCA_B1 Image Arm Platform Security Architecture (PSA), Experimental API True Random Number Generator, Low-Precision Ticker, I2C Peripheral/Slave, Sleep
            ARM_MUSCA_S1ARM_MUSCA_S1 Image Arm Platform Security Architecture (PSA), Experimental API Low-Precision Ticker, I2C Peripheral/Slave, Sleep

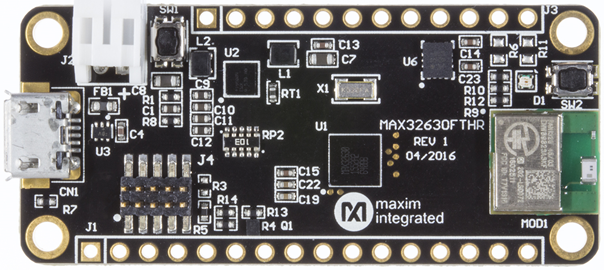

                MAX32630FTHRMAX32630FTHR Image GPIO Port Output, Analog Inputs, PWM Out, Serial RTS/CTS Flow Control, USB Device, Memory Protection Unit, Low-Precision Ticker, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O SD/SDHC Card

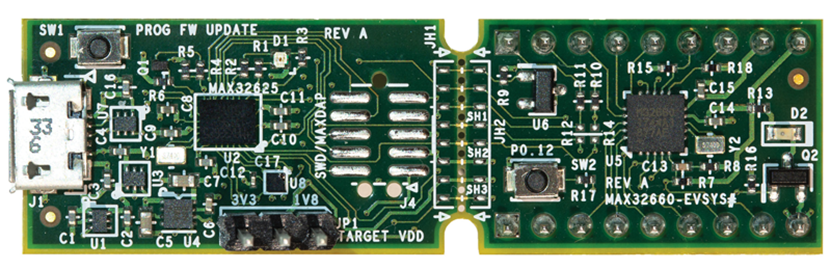

                    MAX32660EVSYSMAX32660EVSYS Image GPIO Port Output, Serial RTS/CTS Flow Control, RTC, Flash IAP, GPIO Port Input, Sleep, Watchdog, SPI Controller/Master, GPIO Port I/O
                        MAX32670EVKITMAX32670EVKIT Image MAX32670 GPIO Port Output, Serial RTS/CTS Flow Control, RTC, Flash IAP, Low-Precision Ticker, GPIO Port Input, Sleep, Watchdog, SPI Controller/Master, GPIO Port I/O
                        • IRAM1: 159 kiB
                        • IROM1: 383 kiB
                        XDOT_MAX32670XDOT_MAX32670 Image MAX32670 GPIO Port Output, Serial RTS/CTS Flow Control, RTC, Flash IAP, Low-Precision Ticker, GPIO Port Input, Sleep, Watchdog, SPI Controller/Master, GPIO Port I/O
                        • IRAM1: 159 kiB
                        • IROM1: 383 kiB
                        NUMAKER_PFM_NUC472NUMAKER_PFM_NUC472 Image NUC472HI8AE Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, Low-Precision Ticker, Legacy Async Serial (UART), GPIO Port Input, Sleep, CAN, SPI Controller/Master, GPIO Port I/O, Async SPI, GPIO Port Output, SPI Peripheral/Slave, Ethernet MAC, PWM Out, USB Device, Memory Protection Unit, Flash IAP, RTC, Watchdog
                        • IRAM1: 64 kiB
                        • IROM1: 512 kiB
                        NUMAKER_PFM_M453NUMAKER_PFM_M453 Image M453VG6AE Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, Low-Precision Ticker, Legacy Async Serial (UART), GPIO Port Input, Sleep, CAN, SPI Controller/Master, GPIO Port I/O, Analog Outputs, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, USB Device, Memory Protection Unit, Flash IAP, RTC, Watchdog
                        • IRAM1: 32 kiB
                        • IROM1: 256 kiB
                        NUMAKER_PFM_NANO130NUMAKER_PFM_NANO130 Image NANO130KE3BN Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, Low-Precision Ticker, Legacy Async Serial (UART), GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, USB Device, RTC, Watchdog
                        • IRAM1: 16 kiB
                        • IROM1: 128 kiB
                        GD32_F307VGGD32_F307VG Image GD32F307VG Analog Inputs, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, Legacy Async Serial (UART), GPIO Port Input, Sleep, CAN, SPI Controller/Master, GPIO Port I/O, Analog Outputs, GPIO Port Output, SPI Peripheral/Slave, Ethernet MAC, PWM Out, Memory Protection Unit, Flash IAP, RTC
                        • IRAM1: 96 kiB
                        • IROM1: 1024 kiB
                        GD32_F450ZIGD32_F450ZI Image GD32F450ZI Arm Platform Security Architecture (PSA) Analog Inputs, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, True Random Number Generator, Legacy Async Serial (UART), GPIO Port Input, Sleep, CAN, SPI Controller/Master, GPIO Port I/O, Analog Outputs, GPIO Port Output, SPI Peripheral/Slave, Ethernet MAC, PWM Out, Memory Protection Unit, Flash IAP, RTC
                        • IRAM1: 448 kiB
                        • IRAM2: 64 kiB
                        • IROM1: 2048 kiB
                        S1SBP6AS1SBP6A Image S1SBP6A Memory Protection Unit, RTC, Flash IAP, Sleep, Watchdog, SPI Controller/Master
                        • IRAM1: 256 kiB
                        • IROM1: 2048 kiB
                        TMPM46BTMPM46B Image TMPM46BF10FG Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, True Random Number Generator, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, Flash IAP, RTC
                        • IRAM1: 512 kiB
                        • IRAM2: 2 kiB
                        • IROM1: 1024 kiB
                        TMPM4G9TMPM4G9 Image TMPM4G9F15FG Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, Memory Protection Unit, Flash IAP, RTC
                        • IRAM1: 192 kiB
                        • IROM1: 1536 kiB
                        TMPM4KNTMPM4KN Image TMPM4KNFYAFG GPIO Port Output, SPI Peripheral/Slave, Reset Reason, Analog Inputs, I2C Peripheral/Slave, PWM Out, Memory Protection Unit, Hardware CRC, Flash IAP, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O
                        • IRAM1: 24 kiB
                        • IROM1: 256 kiB
                        TMPM4NRTMPM4NR Image TMPM4NRF20FG Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, Memory Protection Unit, Flash IAP, RTC
                        • IRAM1: 256 kiB
                        • IROM1: 2048 kiB
                        TMPM4GRTMPM4GR Image TMPM4GRF20FG Reset Reason, Analog Inputs, Async I2C Controller/Master, I2C Peripheral/Slave, Serial RTS/CTS Flow Control, GPIO Port Input, Sleep, SPI Controller/Master, GPIO Port I/O, Analog Outputs, Async SPI, GPIO Port Output, SPI Peripheral/Slave, PWM Out, Memory Protection Unit, Flash IAP, RTC
                        • IRAM1: 256 kiB
                        • IROM1: 2048 kiB
